Pattern Language



The pattern language definition is based on the following assumptions:
  • The pattern definition is created by a human.
  • The definition is consumed by a computer or by a human.
  • The definition is derived from existing program code.

Goals

The goals of the pattern language definition are:

  • It must be easy for a user to create a pattern definition from existing program code.  The whole idea of the Pattern Brewery is based on the assumption that you find patterns while writing (and reading!) program code. The existing program code that a user has identified to be one of the patterns in her/his problem domain should be the base to create a pattern definition with as little modifications as possible.

  • The pattern language definition takes into account that one of the must important issues about patterns is a proper documentation. The documentation serves two main purposes:
    • It helps the consumer of a pattern to select the correct pattern to solve her/his problem.
    • It tells the consumer of a pattern how to combine the pattern with the existing code.

    Again, it should be very easy for the person making the pattern to derive the documentation of new pattern from already existing stuff that documents the existing code like:
    • UML diagrams
    • Textual descriptions
    • Drawings

  • The pattern language must be readable by a computer.  A computer program should be able to show the user the a list of available patterns. It should also be able to display information about a pattern so that a user is able to decide which of the patterns matches her/his problem best.  A computer program should also be able to generate code from the pattern. The code should be "ready-to-use". Depending on the type of pattern, this may require to parameterize the pattern (like class names...).
    The pattern description must allow a program to generate code for different programming languages.


Overview

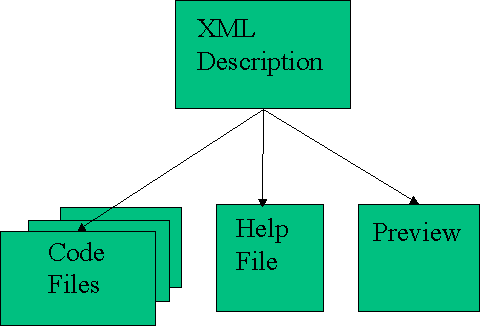

The following figure gives an overview of the pattern definition language.

Overview Figure.

The XML Description file serves as a kind of root, holding the pieces of the pattern description together. It contains information about the pattern like:
  • The name of the pattern like "Session Bean".
  • A grouping information like "EJB Stuff".
  • Information how the pattern can be parameterized.
  • The location of the code files, the help file and the preview file.
The XML scheme of the description file can be found here.

The Code Files are containing the parameterized implementation of the pattern in a specific programming language. A pattern can consist of one or more code files for each implementation of a pattern. The parameterization of the code file works using a macro language. In the most simple case, your are just some text strings like class names:
Original Code
 Parameterized Code
public class MMSingleton{
// Create instance using device Id
public MMSingleton(int Id){
...
}

// Create instance using device name
public MMSingleton(String Name){
...
}
}
public class $classname{
// Create instance using device Id
public $classname(int Id){
...
}

// Create instance using device name
public $classname(String Name){
...
}
}

The selected macro language is language defined by the Velocity template engine. It supports everything you to parameterize a code file including
  • If-then-else statements
  • Includes
  • foreach loops
  • Macros
  • ...
The Help File is a HTML file containing the description of the pattern with (hopefully) all the details a consumer of  the pattern needs to parameterize the pattern correctly and to include it into her/his own code.

The Preview file is HTML of an image file used to give the user of the pattern library a quick overview about what a pattern is good for. In addition to the name of the pattern, this overview shall help the user of the pattern library to select the correct pattern to solve her/his problem best.
